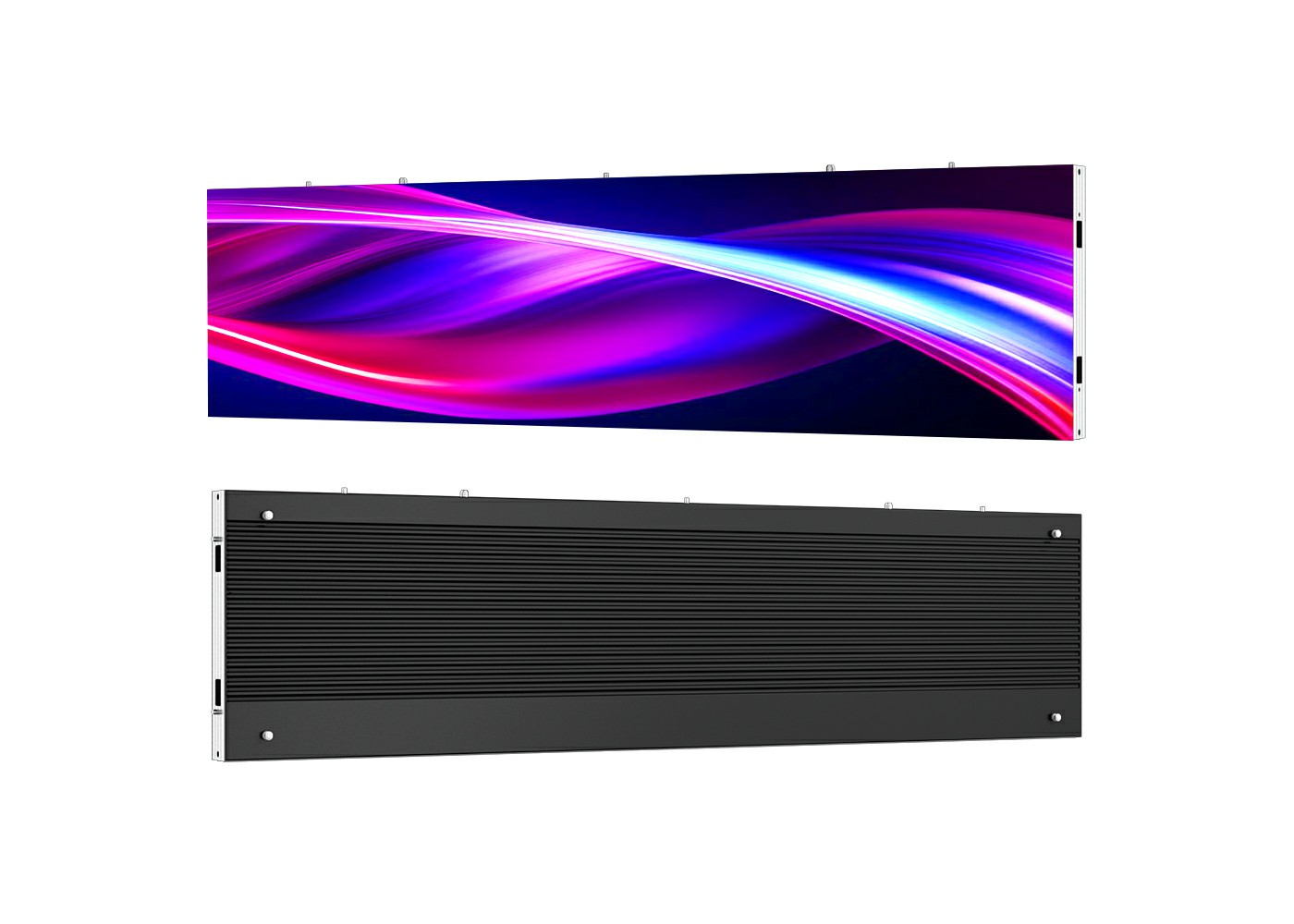

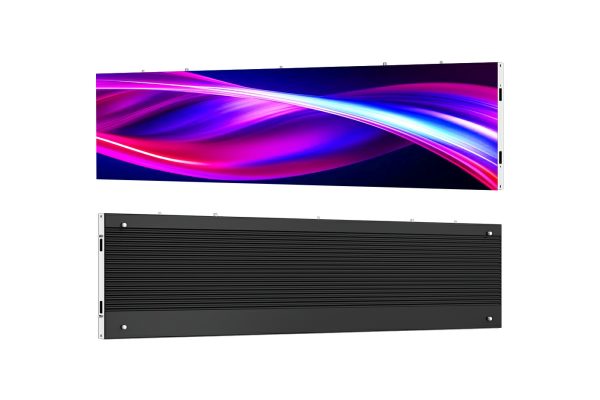

Ledwall – FU Series
Codice: BBLEDWALL-FU
The FU series represents technological excellence in the field of indoor LED displays.
Designed to combine refined aesthetics with cutting-edge technical performance, this series of LED walls stands out for its ultra-slim profile (just 34 mm) and an extremely versatile ‘stretched’ format, ideal for architectural installations, luxury retail, conference rooms and television studios.
Key features:
- Ultra-light and slim design: with a thickness of just 34 mm and a low weight, the FU series is one of the lightest and slimmest solutions on the market. This facilitates installation on existing walls without requiring bulky support structures.
- Impeccable visual quality: thanks to an extremely high refresh rate of up to 7680Hz, images are smooth and flicker-free, making these screens perfect for video recording and live streaming. They guarantee perfect visibility from every angle.
- Magnetic front maintenance: the magnetic mounting system allows for fully front-access maintenance. Modules can be removed and replaced in seconds without needing to access the rear of the screen, optimising time and costs.
- Maximum flexibility in terms of size: the FU series offers cabinets in various sizes that can be perfectly combined with one another.
- Reliability and heat dissipation: constructed from high-quality die-cast aluminium with a rear-vented design, the cabinet ensures optimal passive heat dissipation, eliminating the need for noisy fans and extending the operational life of the components.
- Pixel pitch (mm): P1.56 | P1.95 | P2.5 | P2.6 | P2.9 | P3.91
- Module size: 250 x 250 mm
- Module weight: 0.35 kg
- LED Type: SMD1212 | SMD1515 | SMD1515 | SMD1515 | SMD1515| SMD2121
- Resolution: 160*160 | 128*128 | 100*100 | 96*96 | 84*84 | 64*64
- Viewing angle: 160W/160H
- Brightness: 800-1.200cd/m2
- Frame rate: ≥ 60/sec
- Degree of protection: IP31
- Operating humidity: 10% – 90% UR
- Best viewing distance (mt): >1.56 (P1.56) | >1.875 (P1.875) | >2 (P2) | >2.5 (P2.5)
- Refresh rate: 7680Hz
- Input voltage: 110V-240, 50-60Hz
- Power consumption: 280W/m2 (max)
- Average LED lifetime: ≥ 50.000 ore
- Operating temperature: -10°C ~ +40°C
